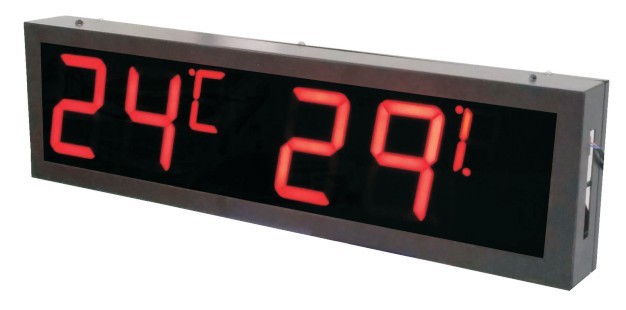

Temperature & Humidity Indicator
Liuten Energy Temperature & Humidity Indicator is a microcontroller-based digital display system designed for real-time monitoring of ambient temperature and relative humidity in industrial, commercial, and laboratory environments.
The Liuten Energy Temperature & Humidity Indicator is a reliable and user-friendly digital monitoring system designed to provide real-time measurement and display of ambient temperature and relative humidity. Equipped with high-accuracy sensors and a bright LED jumbo display, it enables clear visibility from long distances, making it ideal for industrial, commercial, and laboratory environments. The system helps maintain optimal environmental conditions by continuously monitoring critical parameters that can affect equipment performance, product quality, and workplace safety. Its robust construction, low maintenance requirements, and customizable display options make it suitable for a wide range of applications including power plants, substations, control rooms, warehouses, pharmaceutical facilities, data centers, and manufacturing units. With its rugged industrial design and dependable performance, the Liuten Energy Temperature & Humidity Indicator provides an efficient solution for environmental monitoring and process control.
The Liuten Energy Temperature & Humidity Indicator is an advanced microcontroller-based environmental monitoring system designed to accurately measure and display ambient temperature and relative humidity in real time. The unit features a high-brightness LED jumbo display that ensures excellent visibility from long distances, making it suitable for industrial plants, power stations, control rooms, laboratories, warehouses, pharmaceutical facilities, data centers, and commercial buildings.
Maintaining proper temperature and humidity levels is critical for the reliable operation of electrical equipment, manufacturing processes, storage facilities, and sensitive electronic systems. The Liuten Energy Temperature & Humidity Indicator continuously monitors environmental conditions and provides instant visual indication, enabling operators to take timely corrective actions whenever required.
Designed for continuous operation in demanding industrial environments, the system incorporates high-accuracy digital sensors, robust electronics, and a rugged powder-coated metal enclosure. The display is available in various digit sizes and can be customized according to customer requirements and viewing distance.
The indicator can be supplied in indoor or outdoor versions and may be integrated with PLC, SCADA, BMS, or other automation systems through optional communication interfaces such as RS-485 Modbus RTU. Additional features such as high/low alarm outputs, data logging, and wireless communication can also be provided upon request.
- Simultaneous Temperature & Humidity Display
- High-Brightness Jumbo LED Display
- Long-Distance Visibility
- Real-Time Monitoring
- High Accuracy Digital Sensors
- Wall-Mounted
- Design Indoor & Outdoor Models Available
- Low Maintenance
Specifications
| Temperature Range | 0°C to 99.9°C (Customizable) |
|---|---|
| Humidity Range | 0% RH to 99% RH |
| Temperature Accuracy | ±0.5°C |
| Humidity Accuracy | ±3% RH |
| Display Type | High Brightness LED |
| Display Color | Red / Green / Amber |
| Digit Height | 2", 4", 6", 8" (Customizable) |
| Viewing Distance | Up to 100 Meters |
| Sensor Type | Digital Temperature & Humidity Sensor |
| Power Supply | 230V AC ±10%, 50Hz |
| Communication | Optional RS-485 Modbus RTU |
| Alarm Output | Optional Relay Contact |
| Mounting | Wall Mounted |
| Enclosure Material | Powder Coated MS / SS |
| Protection Class | IP54 / IP65 (Optional) |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% Non-Condensing |
Applications
- Control Rooms
- Electrical Substations
- Power Plants
- Laboratories
- Warehouses
- Pharmaceutical
- Facilities
- Data Centers
- Manufacturing Plants
Key Benefits
- Real-time Temperature & Humidity Monitoring
- Protects Equipment from Heat and Moisture Damage
- Improves System Reliability and Performance
- Enhances Product Quality and Storage Conditions
- High Visibility LED Display for Easy Monitoring
- Reduces Maintenance Costs and Downtime
- Supports HVAC and Environmental Control Systems
- Optional Alarm and Communication Features
- Easy Installation and Low Maintenance
- Suitable for Continuous 24×7 Industrial Operation
